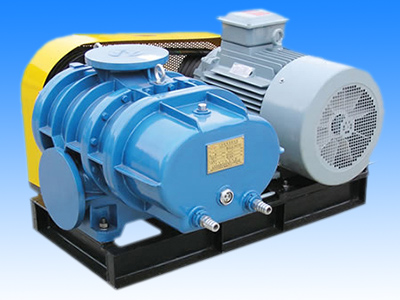

3L42WC、3L42WC水冷型羅茨鼓風機
產(chǎn)品詳細介紹
風機型號 |
轉(zhuǎn)速n r/min |
升壓 Δp |
進口流量Q m3/min |
軸功率Kw |
配套電機 |
噪音dB(A) |
整機重Kg |
||
Kpa |
mmH2O |
型號 |
功率Kw |
||||||
3L42WC |
1100 |
9.8 |
1000 |
13.45 |
4.40 |
Y132S-4 |
5.5 |
||
19.6 |
2000 |
12.70 |
6.76 |
Y132M-4 |
7.5 |
||||
29.4 |
3000 |
12.08 |
9.25 |
Y160M-4 |
11 |
||||
39.2 |
4000 |
11.68 |
11.75 |
Y160L-4 |
15 |
||||
49 |
5000 |
11.25 |
14.38 |
Y180M-4 |
18.5 |
||||
58.8 |
6000 |
10.88 |
17.00 |
Y180M-4 |
18.5 |
||||
68.6 |
7000 |
10.56 |
19.70 |
Y180L-4 |
22 |
||||
風機型號 |
轉(zhuǎn)速n r/min |
升壓 Δp |
進口流量Q m3/min |
軸功率Kw |
配套電機 |
噪音dB(A) |
整機重Kg |
||
Kpa |
mmH2O |
型號 |
功率Kw |
||||||
3L42WC |
1200 |
9.8 |
1000 |
14.87 |
4.90 |
Y132S－4 |
5.5 |
||
19.6 |
2000 |
14.15 |
7.42 |
Y160M－4 |
11 |
||||
29.4 |
3000 |
13.52 |
10.10 |
Y160L－4 |
15 |
||||
39.2 |
4000 |
13.10 |
12.82 |
Y160L－4 |
15 |
||||
49 |
5000 |
12.68 |
15.56 |
Y180M－4 |
18.5 |
||||
58.8 |
6000 |
12.32 |
18.40 |
Y180L－4 |
22 |
||||
68.6 |
7000 |
12.00 |
21.22 |
Y200L－4 |
30 |
||||
1310 |
9.8 |
1000 |
16.32 |
5.45 |
Y132M－4 |
7.5 |
|||
19.6 |
2000 |
15.65 |
8.50 |
Y160M－4 |
11 |
||||
29.4 |
3000 |
15.06 |
11.32 |
Y160L－4 |
15 |
||||
39.2 |
4000 |
14.55 |
14.34 |
Y180M－4 |
18.5 |
||||
49 |
5000 |
14.16 |
17.35 |
Y180M－4 |
18.5 |
||||
58.8 |
6000 |
13.78 |
20.40 |
Y180L－4 |
22 |
||||
68.6 |
7000 |
13.46 |
23.47 |
Y200L－4 |
30 |
||||
風機型號 |
轉(zhuǎn)速n r/min |
升壓 Δp |
進口流量Q m3/min |
軸功率Kw |
配套電機 |
噪音dB(A) |
整機重Kg |
||
Kpa |
mmH2O |
型號 |
功率Kw |
||||||
3L42WC |
1600 |
9.8 |
1000 |
20.50 |
8.25 |
Y160M－4 |
11 |
||
19.6 |
2000 |
19.75 |
12.05 |
Y160L－4 |
15 |
||||
29.4 |
3000 |
19.15 |
15.85 |
Y180M－4 |
18.8 |
||||
39.2 |
4000 |
18.67 |
19.70 |
Y180L－4 |
22 |
||||
49 |
5000 |
18.25 |
23.55 |
Y200L－4 |
30 |
||||
58.8 |
6000 |
17.90 |
27.40 |
Y200L－4 |
30 |
||||
68.6 |
7000 |
17.70 |
31.35 |
Y225S－4 |
37 |
||||
